Thread: Super Pacer (Bushmaster) Mod

  1. #391
    Stephen's Avatar
    Join Date
    Nov 2007
    Location
    Lopez Island, WA
    Posts
    3,460
    Post Thanks / Like

    Default Re: Super Pacer (Bushmaster) Mod

    Quote Originally Posted by Steve Pierce View Post
    I have played with those fittings before. Found an old thread on the subject. https://www.supercub.org/forum/showt...nd-Slats-Video
    Good pirep Steve. That was a lot of Incidence added. A lower cruise makes sense. The brackets Javeron uses are different. They replace the spar attachment pieces with new, which have an offset hole. It would be difficult to visually tell the Javeron front attachment brackets from stock. It seems to me that increasing angle of incidence would means stalls will a bit lower deck angle.
    Last edited by Stephen; 02-19-2020 at 03:57 AM.
    "You can only tie the record for flying low."

  2. #392
    Administrator Steve Pierce's Avatar
    Join Date
    Nov 2007
    Location
    Graham, Texas, United States
    Posts
    12,576
    Post Thanks / Like
    Blog Entries
    1

    Default Re: Super Pacer (Bushmaster) Mod

    Quote Originally Posted by Stephen View Post
    Good pirep Steve. That was a lot of Incidence added. A lower cruise makes sense. The brackets Javeron uses are different. They replace the spar attachment pieces with new, which have an offset hole. It would be difficult to visually tell the Javeron front attachment brackets from stock. It seems to me that increasing angle of incidence would means stalls will a bit lower deck angle.
    They are different than these?

  3. #393
    Stephen's Avatar
    Join Date
    Nov 2007
    Location
    Lopez Island, WA
    Posts
    3,460
    Post Thanks / Like

    Default Re: Super Pacer (Bushmaster) Mod

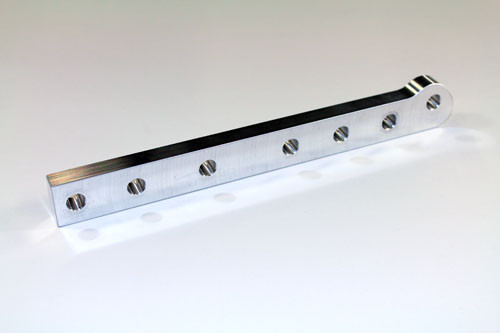

    This is the Javron spar butt hinge bracket. It is 1/4 inch but, they also make larger offsets. It sells for $22. I was tempeted to try it on my Bushmaster/SP project but, that might be stretching rules a bit. Plus, I was not excited about losing cruise.
    Last edited by Stephen; 02-19-2020 at 11:55 AM.
    "You can only tie the record for flying low."

  4. #394
    Administrator Steve Pierce's Avatar
    Join Date
    Nov 2007
    Location
    Graham, Texas, United States
    Posts
    12,576
    Post Thanks / Like
    Blog Entries
    1

    Default Re: Super Pacer (Bushmaster) Mod

    I believe that is where these came from, 3/4" offset.

  5. #395
    Stephen's Avatar
    Join Date
    Nov 2007
    Location
    Lopez Island, WA
    Posts
    3,460
    Post Thanks / Like

    Default Re: Super Pacer (Bushmaster) Mod

    If I remember correctly, a 1/4" offset increased angle of incidence one degree.
    "You can only tie the record for flying low."

  6. #396
    Administrator Steve Pierce's Avatar
    Join Date
    Nov 2007
    Location
    Graham, Texas, United States
    Posts
    12,576
    Post Thanks / Like
    Blog Entries
    1

    Default Re: Super Pacer (Bushmaster) Mod

    Quote Originally Posted by Stephen View Post
    If I remember correctly, a 1/4" offset increased angle of incidence one degree.
    1/4" in 30" is 1/2 degree, 1/2" is a full degree.

  7. #397
    Stephen's Avatar
    Join Date
    Nov 2007
    Location
    Lopez Island, WA
    Posts
    3,460
    Post Thanks / Like

    Default Re: Super Pacer (Bushmaster) Mod

    Quote Originally Posted by Steve Pierce View Post
    1/4" in 30" is 1/2 degree, 1/2" is a full degree.
    Then I wouldn't think a 1/4" would be noticable. Putting more air in your tires might do the same.
    "You can only tie the record for flying low."

  8. #398
    Just Call Me Al's Avatar
    Join Date
    Aug 2015
    Posts
    53
    Post Thanks / Like

    Default Re: Super Pacer (Bushmaster) Mod

    Stephen,
    Could you please post dimensions on your flaps? Overall length, I/B end to first hinge, center to center on the 3 hinges. Thank you.

  9. #399
    Stephen's Avatar
    Join Date
    Nov 2007
    Location
    Lopez Island, WA
    Posts
    3,460
    Post Thanks / Like

    Default Re: Super Pacer (Bushmaster) Mod

    Quote Originally Posted by Just Call Me Al View Post
    Stephen,
    Could you please post dimensions on your flaps? Overall length, I/B end to first hinge, center to center on the 3 hinges. Thank you.
    I'll get the exact numbers for you. I did use the same inboard flap hinge location from the Pacer wing. The other two locations are very close to the drawings. My Ailerons is made to SC dimensions. I started with the aileron located all the way out, then filled in with as much flap as possible. I tapered the flap inboard to fit closer to the fuselage. I'll get you the measurements.
    "You can only tie the record for flying low."

  10. #400
    Stephen's Avatar
    Join Date
    Nov 2007
    Location
    Lopez Island, WA
    Posts
    3,460
    Post Thanks / Like

    Default Re: Super Pacer (Bushmaster) Mod

    My flap is 90 1/2" and tapers to 89 3/8"

    The first inboard flap hinge is 10 7/8" from spar attachment hole, which is original. Number two is 44 3/8", which is what the plans call for. Number three is 77 3/4", which is 3 inches outboard of the plans but, gives better spacing of hinges on the flap.

    The aileron is SC length 102". The first inboard hinge is 109 1/4", 7/8" outboard of the plans. The second hinge is142 1/2", which matches the plans. The third hinge is 172 3/4", which is 3 inches outboard of the plans.
    "You can only tie the record for flying low."
